UPS SINE WAVE (M) – SE SERIES – UPS SE2100

Product Category : UPS SINE WAVE (M)
Product Series : SE SERIES

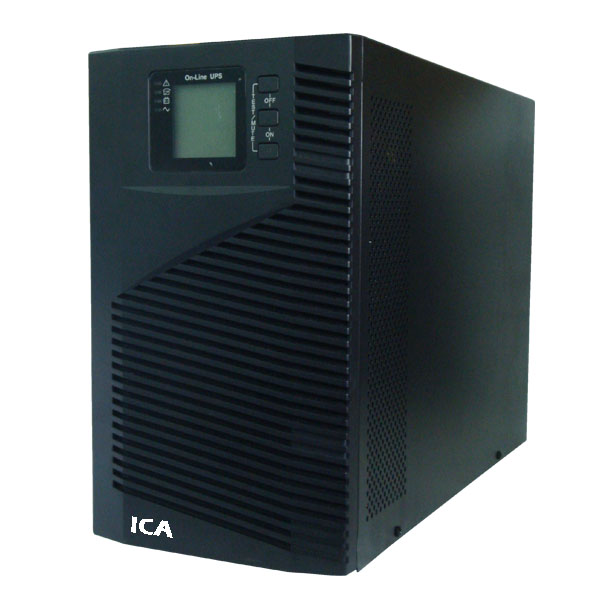

Product Name : UPS SE2100
Harga : Call Of Price

ICA UPS SE2100 Capacity 2000VA. Because the UPS is the true on-line system, conditioned power is provided continuously to the attached load. The UPS constantly regulates and filter the AC input voltage and supply a clean and stable AC voltage to the output and charge the batteries. When the AC input voltage low or loss, the UPS protects the load instantaneously and supply a stable AC voltage without any transfer time.

TECHNICAL INFORMATION
Description : UPS SE2100
Capacity : 2000 VA / 1800 W
AC Voltage : 110 ~ 290 V
: 1 Phase
AC Frequency : 45 ~ 65 Hz
AC Protection : 12 A
DC Voltage : 72 V
DC INT Battery : 6 x 12 V, 7 Ah
DC Protection : FUSE
CHG Topology : SWITCHING REGULATION
CHG Floating Voltage : 81.6 V
INV Wave Form : SINEWAVE
INV Distorsion : < 3% THD
INV Topology : Online Double Conversion
INV Voltage : 220 ± 1% V
INV Frequency : 50 ± 1% Hz
INV Efficiency : ≥ 90%
Transfer Time When AC In Loss : 0 ms
Transfer Time STS : 2 ms Inverter to Bypass, 0 ms Back To Inverter
Back Up Time : 10 min
BZR AC Input Abnormall : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL
BZR Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL
Opera Temp : 0 – 40 °C
Dimension(DxWxH) : 470 x 191 x 336 mm
Weight : 25.8 Kg
